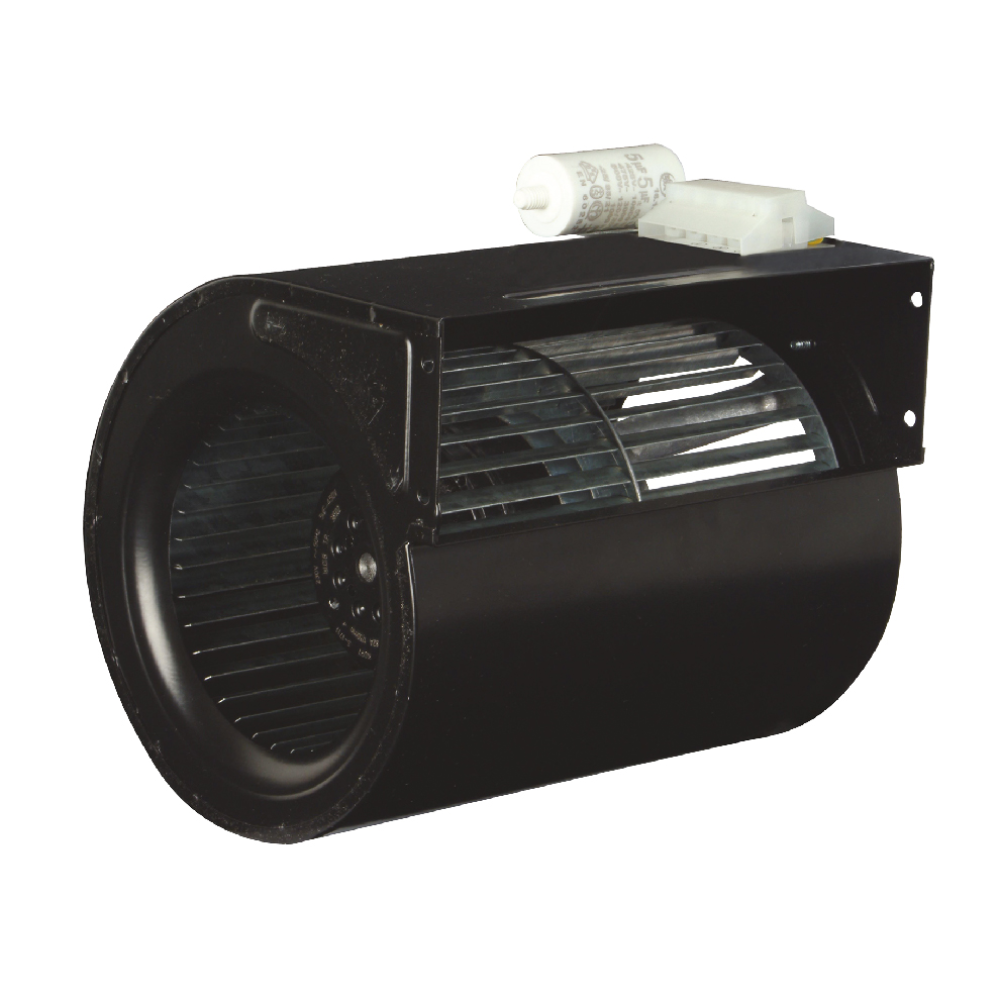

The cabinet is made of galvanized steel sheet and is coated with black epoxy lacquer. The fan mounting brackets are also made of galvanized sheet metal. Available in single or double-sided suction versions.
Running wheel
The impeller is radial, with forward curved blades. The impeller is made of galvanized sheet metal and is statically and dynamically balanced.
Motor
The motor is asynchronous with external rotor and resistance armature, with starting capacitor. The insulation is class B, the winding is equipped with a thermal fuse against overheating. Protection class IP44.
Square box
The terminal box is mounted on the fan housing. The condenser is also mounted on the fan housing.
Speed control
The fans are in the basic version continuously adjustable by changing the voltage.
Mounting
Fan mounting in every position of the fan axis, preferably horizontal mounting with regard to bearing life.
Instructions
Fans are particularly suitable for the construction of air conditioning and ventilation units or other air handling applications. Please enquire about delivery terms and delivery dates.
