Description

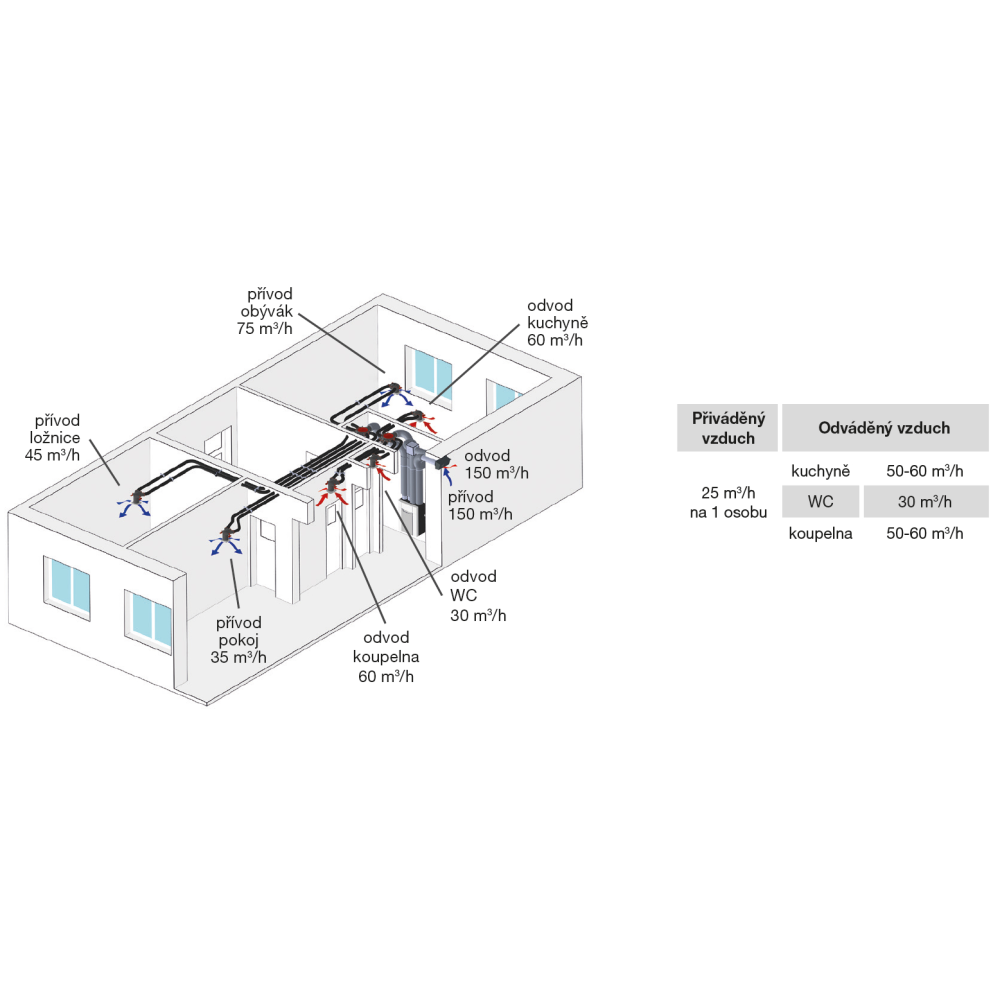

ED Flex® EASY DOMEO SET is suitable for installation in standardized apartments or small houses. It is characterized by its easy installation, which can be handled by almost everyone.
Components

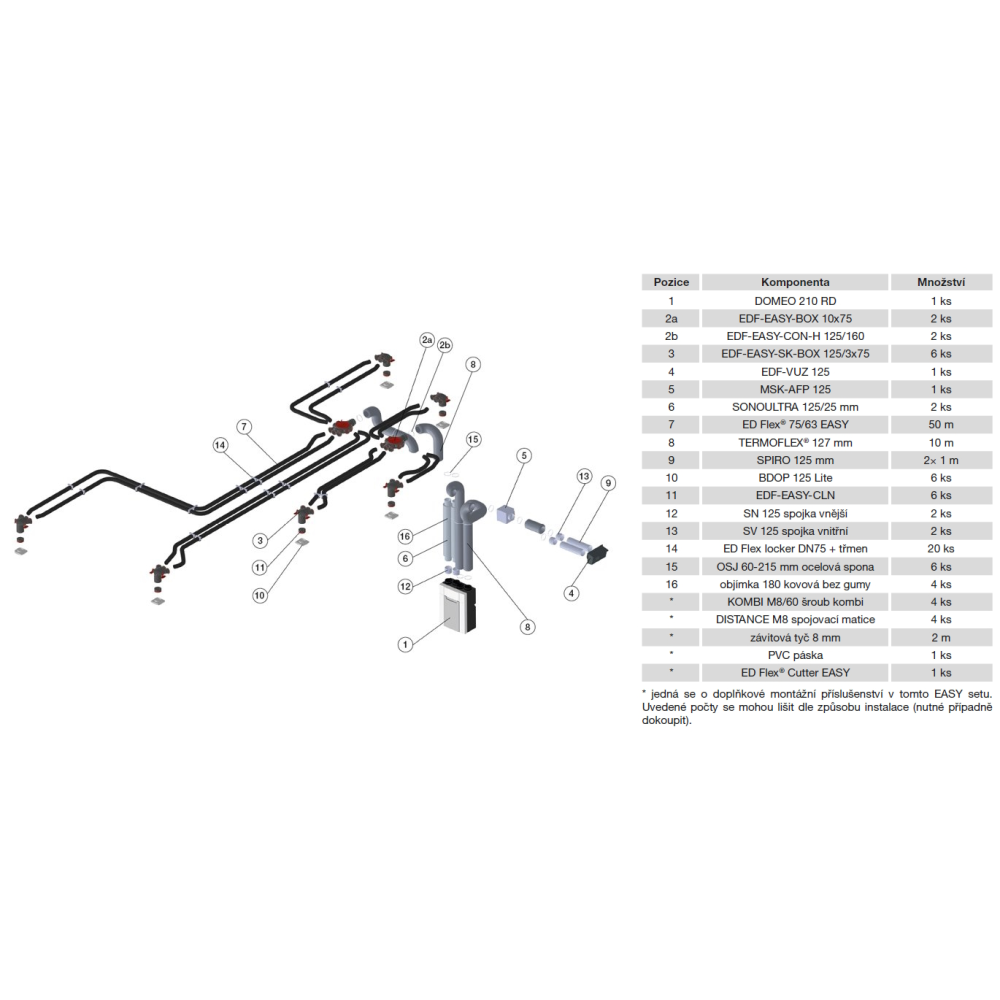

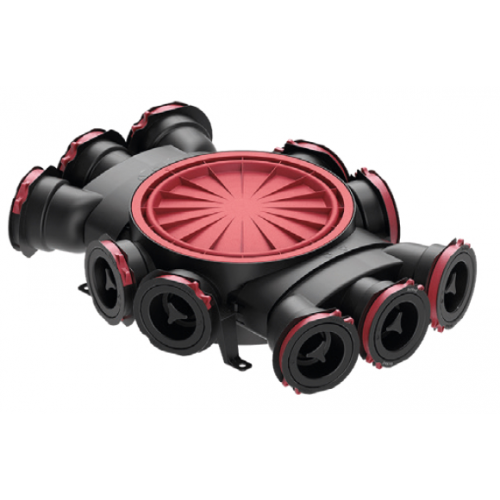

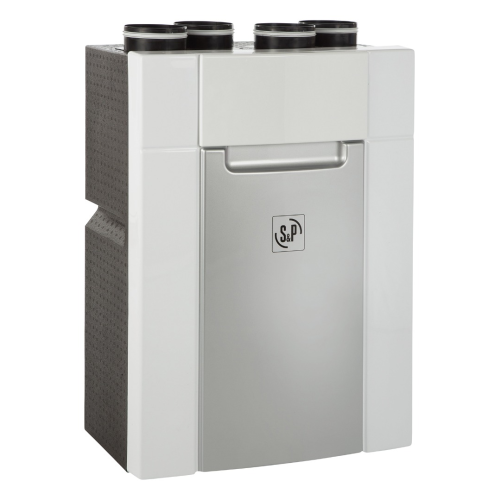

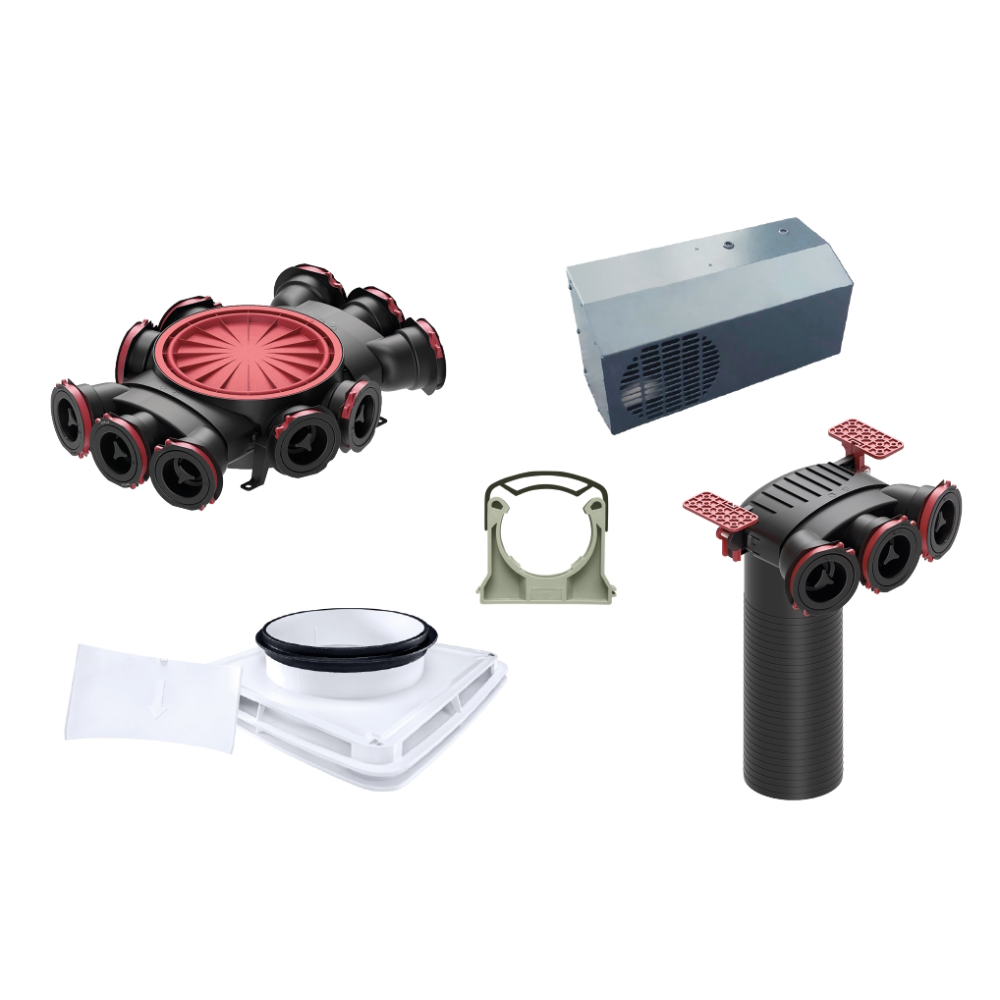

The system includes a DOMEO 210 RD residential heat recovery unit, flexible PE ductwork specifically designed for ventilation applications, plastic distribution boxes, terminal boxes, end elements and other accessories.
Ventilators
For exhaust air intake and fresh air intake, the ventilation unit is equipped with radial fans with backward curved blades and EC electric motors.
Motors
The unit has single phase EC motors 230 V / 50 Hz.
Recuperation
The counter-current plate heat exchanger is plastic, efficiency up to 92%. The heat exchanger is accessible by removing the front wall of the unit. For summer operation, the unit is equipped with an exchanger bypass.
Filter
The exhaust air intake has a G4 (ISO coarse 65%) filter and the fresh air intake has an M5 (ISO ePM10 50%) filter, optionally an F7 (ISO ePM1 65%) filter. Access is by removing the filter service cover on the front of the unit. No tools are required for removal.
Replacement filters:
- AFR-DOMEO M5/G4 replacement filter kit
Regulation
In the performance characteristics, the characteristics for each speed are indicated. The remote control has four potentiometers for setting the flow rate to standard, boosted or cooling mode in summer. The last potentiometer is used to set the ventilation mode balance. It is possible to set equal pressure, positive pressure or negative pressure mode. The unit has a 0-10 V analog input for connecting external CO2, RH or temperature sensors. In summer, the air in the unit can be circulated outside the heat exchanger, allowing partial cooling of the building at night.
Electrical connection
A forked cable is routed from the unit.
