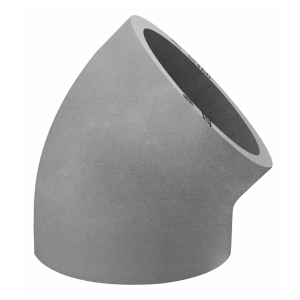

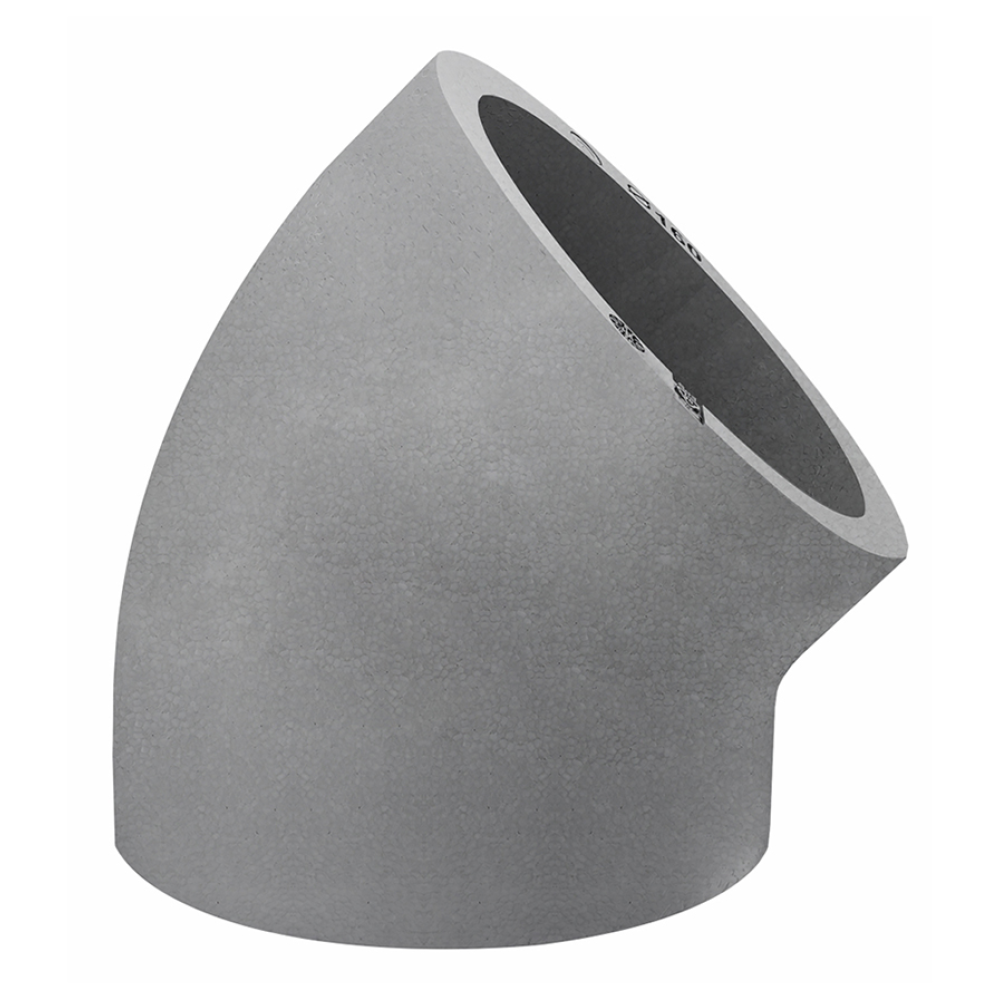

EDD-EASY-OL 45° 200 arc EPS

- EPS arc
- expanded polystyrene

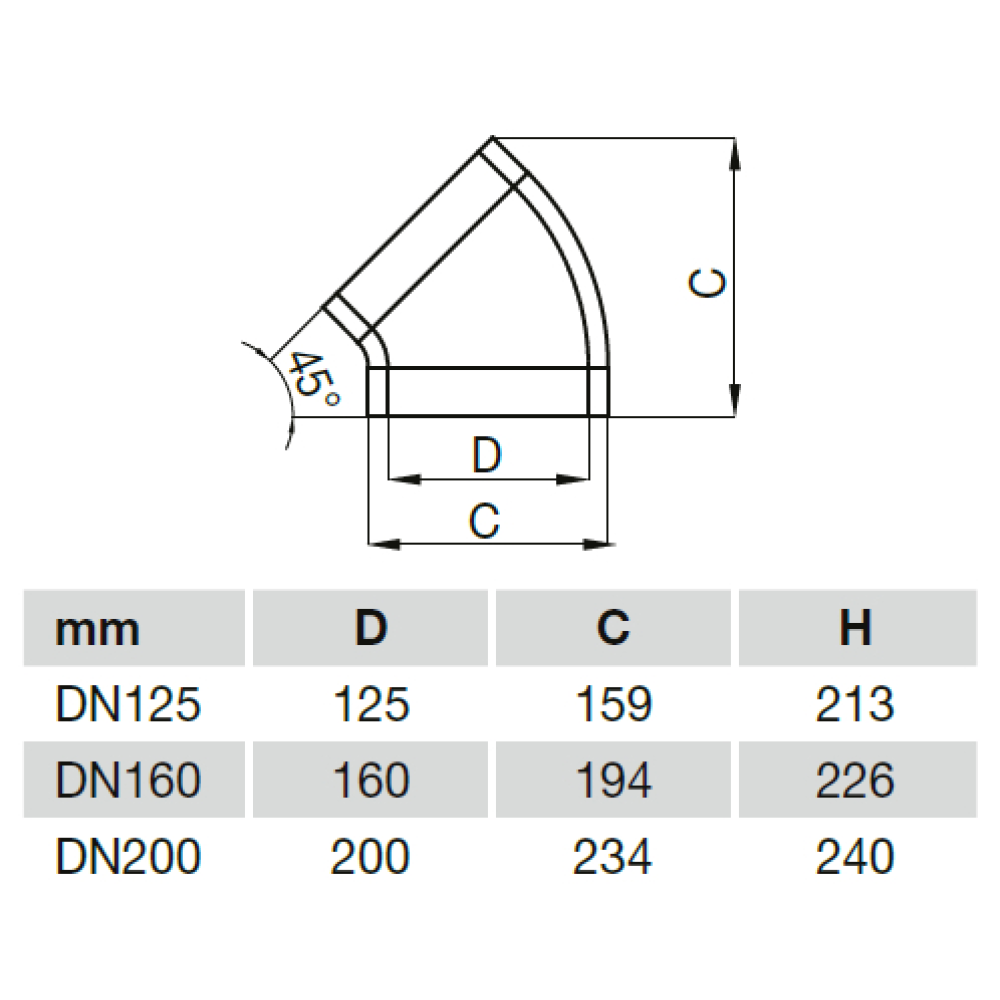

- inner diameter of pipe DN125, DN160 or DN200

ED Duct System EASY is a pre-insulated air duct system suitable for air distribution between the exterior and the heat recovery unit. Thanks to its compatibility with common types of air ducts, it can also be used wherever there is a risk of possible condensation.

The pipe and all fittings of the system are made of the same material, namely 17 mm thick EPS, which is an excellent insulator with a thermal conductivity coefficient of λ = 0.029 (W/m*K). The pipe wall also contains carbon additives that increase the resistance of the pipe to fungi, mould and bacteria. The piping system is lightweight, tight and has excellent insulation properties. Another advantage is its fast installation, without the need for additional fasteners. The piping can be easily cut with a regular knife - always in 50 mm increments, depending on the installation needs. The individual components are connected by means of a plastic coupling, which is provided with holes to indicate the correct connection (pipe insertion). Tightness is guaranteed by an integrated gasket. The system is available in standard sizes 125, 160 and 200 mm. To connect the system to the 150 and 180 mm dimensions, the EPDM adapter EDD-EASY-PRO can be used.
