- it is made of galvanized sheet metal without insulation as standard
- the cabinet includes a terminal block and an electronic control unit with two temperature sensors
- designed for EHR 140, 280, 300, 325 and 480 units, DOMEO 210 and others
- the heating rods are made of stainless steel
- equipped with a safety grille at the inlet and outlet
Electrical connection
- 2 thermostats, operating thermostat 45 °C and safety thermostat 70 °C, safety fuse 110 °C non-reversible
- NTC temperature sensor to set the operating value according to the inlet temperature, adjustable by internal potentiometer 0-20 °C
- NTC temperature sensor to set the outlet temperature, adjustable by an internal potentiometer 0-30 °C
- safety thermostat button is accessible inside the terminal block, on request it can be placed on the cabinet lid
- the heater must be positioned to ensure free access for service and maintenance
- IP42 protection
Regulation
- the controller is powered directly from the mains 230 VAC / 50 Hz
- the output temperature is continuously controllable 0-100%, internally adjustable by potentiometer 0-30 °C
- the controller allows connection of an external channel sensor (electrical insulation class II.), which senses the current air temperature behind the heater or recuperator
- it is possible to block the heater when the input temperature reaches the set value of 0-20 °C
- it is possible to block the heater by connecting an external air flow sensor, pressure sensor, room thermostat, etc.
Accessories

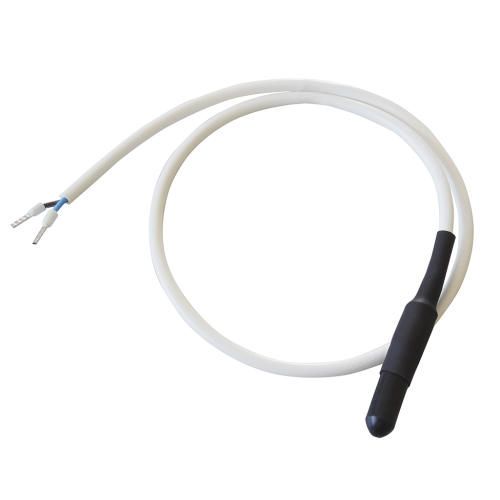

- TGCU-3-IZ - external output for temperature sensor - electrical insulation class II
Important
A minimum of 0.5 m of steel piping must be installed before and after the heater to prevent contact with combustible parts. The use of an air flow sensor or pressure sensor is required to block the heater if the flow rate or flow velocity falls below the permitted limit.
Information
The MBE-AFP heater can be used very simply to reheat the incoming fresh air. If setting the outlet temperature with an internal potentiometer is not sufficient, a room wall thermostat with an expansion contact can be used to lock out the heater when the room temperature is reached. If the room temperature drops, the thermostat will unlock the heater operation.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
