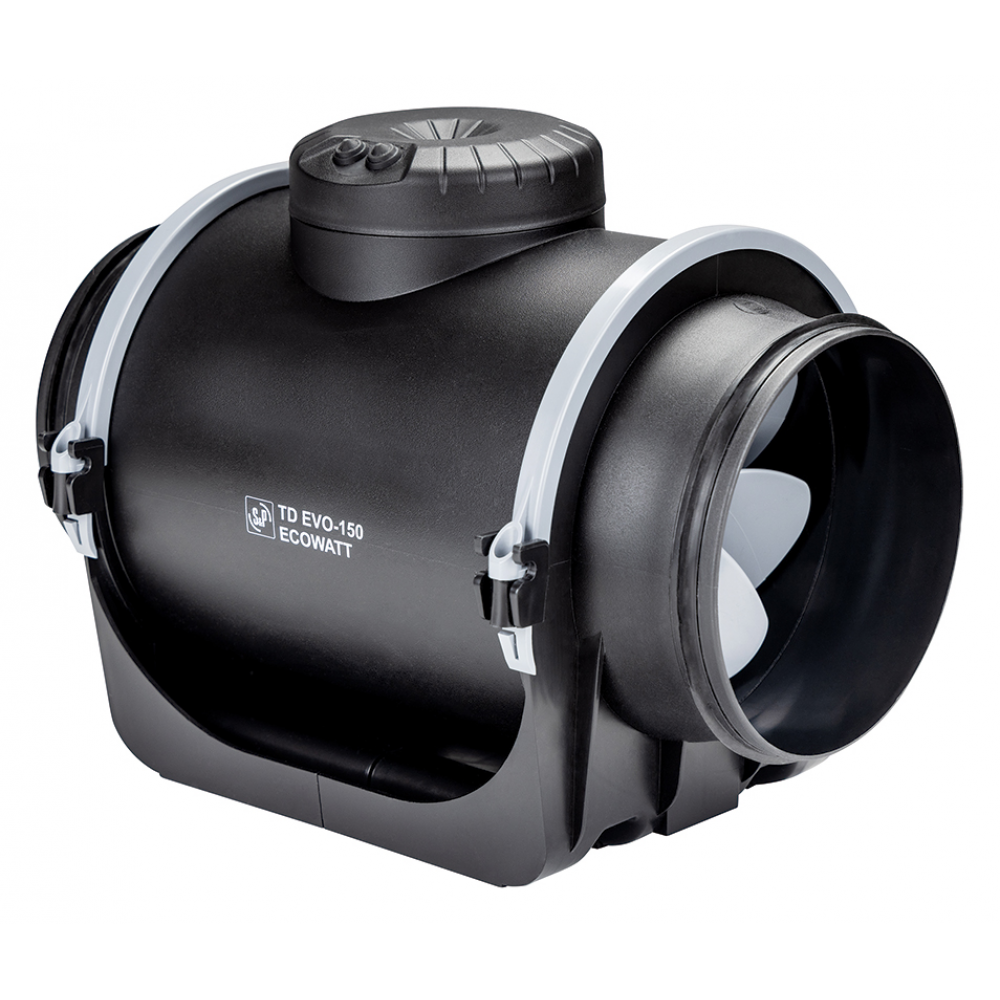

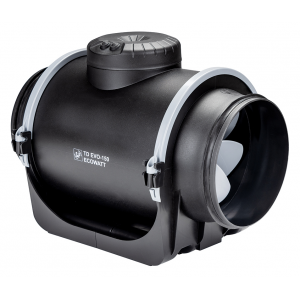

TD-EVO PF 125 Ecowatt IP44 diagonal energy-saving fan made of recycled plastics

Cabinet

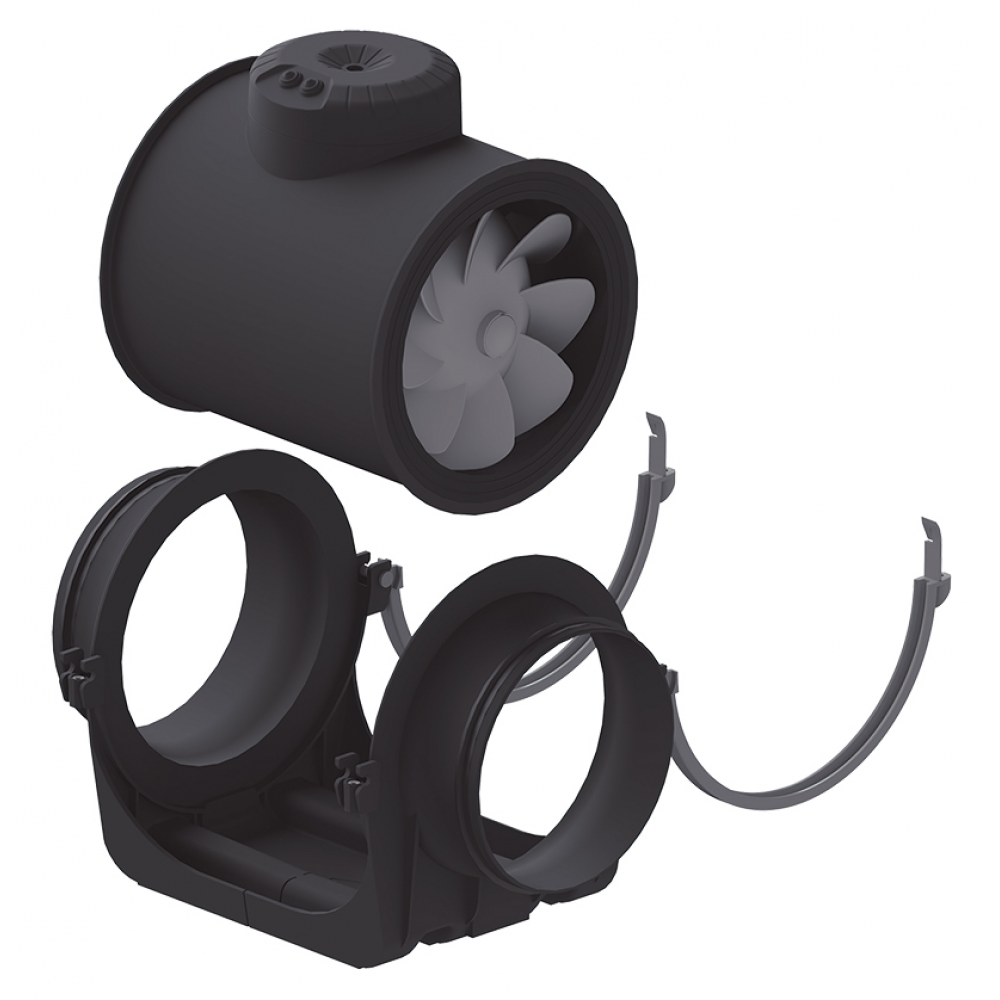

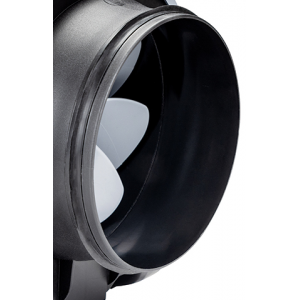

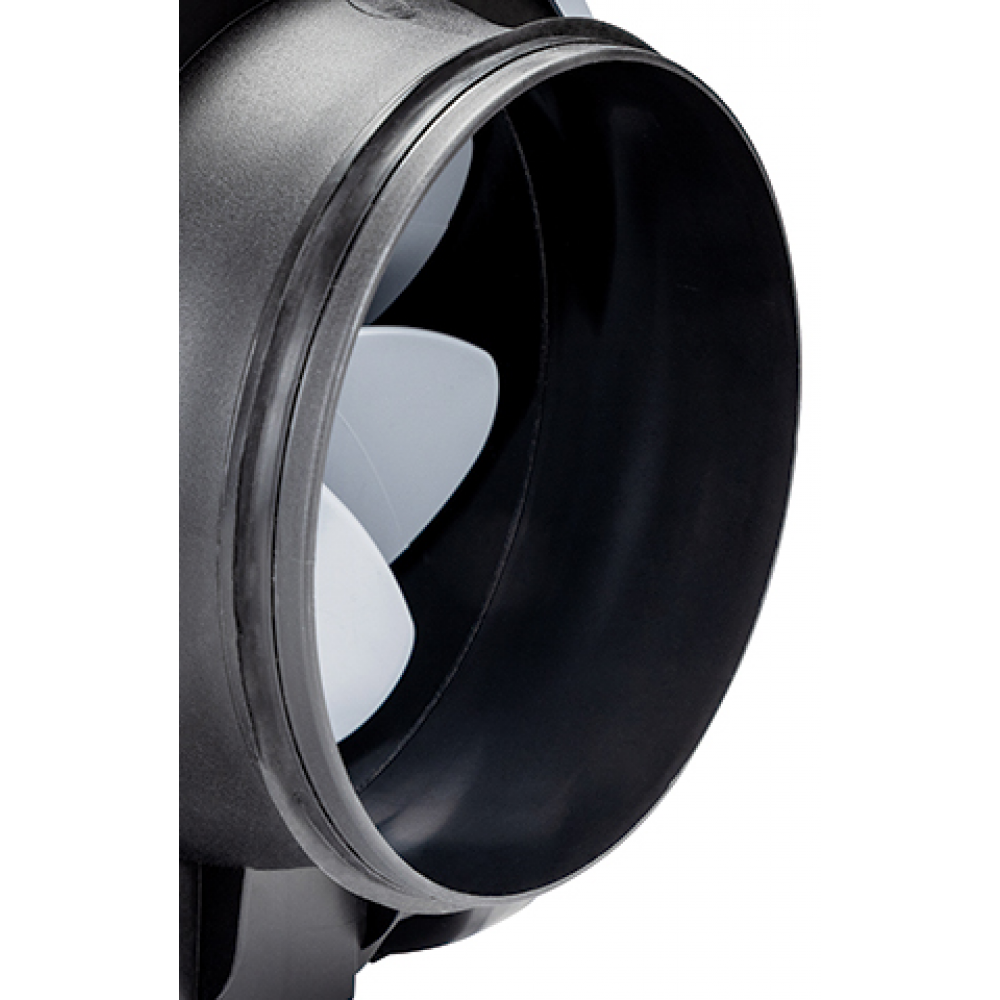

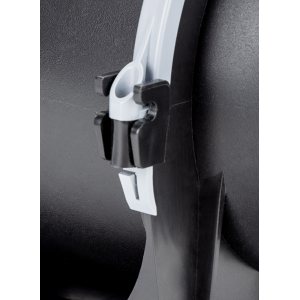

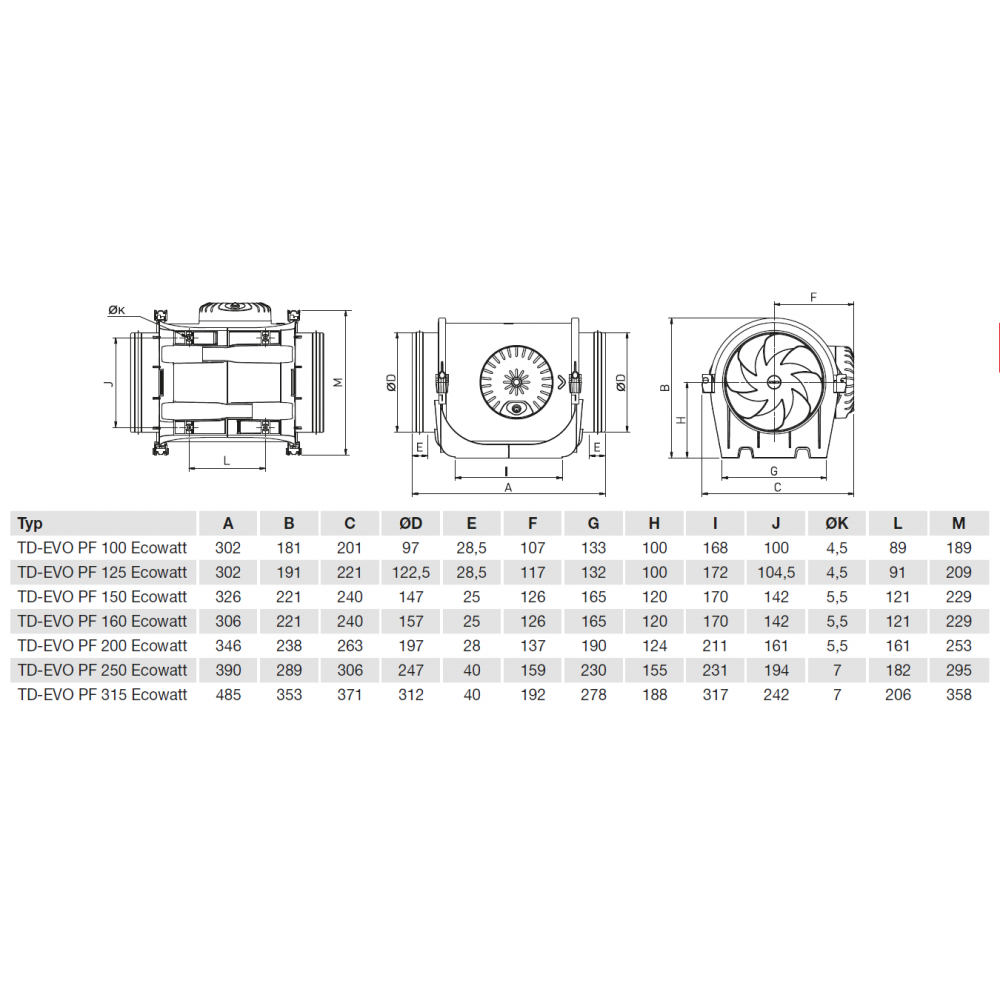

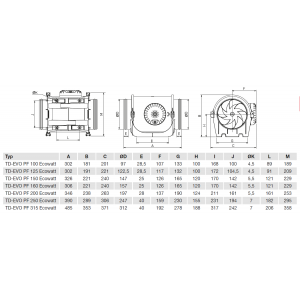

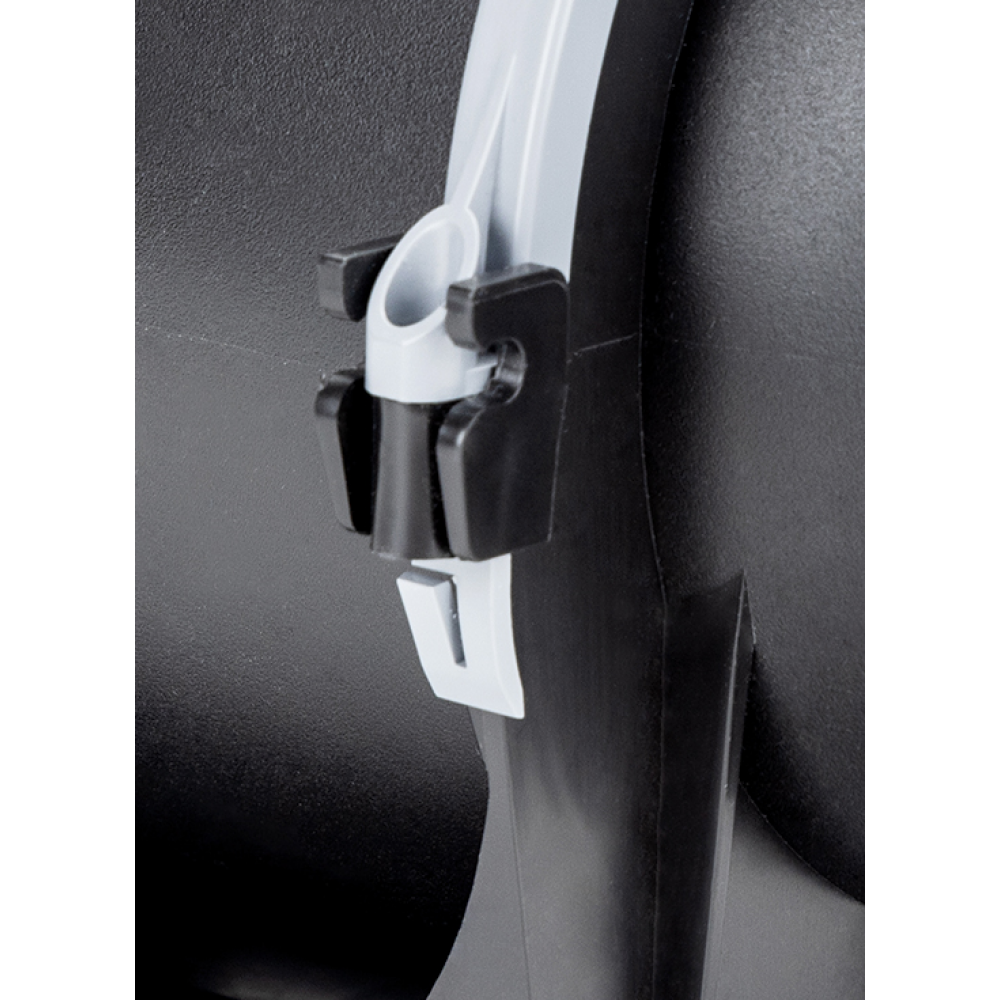

is made of 85% recyclable plastic. The enclosure consists of a mounting rail with two throats, fitted with gaskets, and a motor which is connected to the throats with quick-release clips. The design allows the motor section to be removed without having to disconnect the pipework.

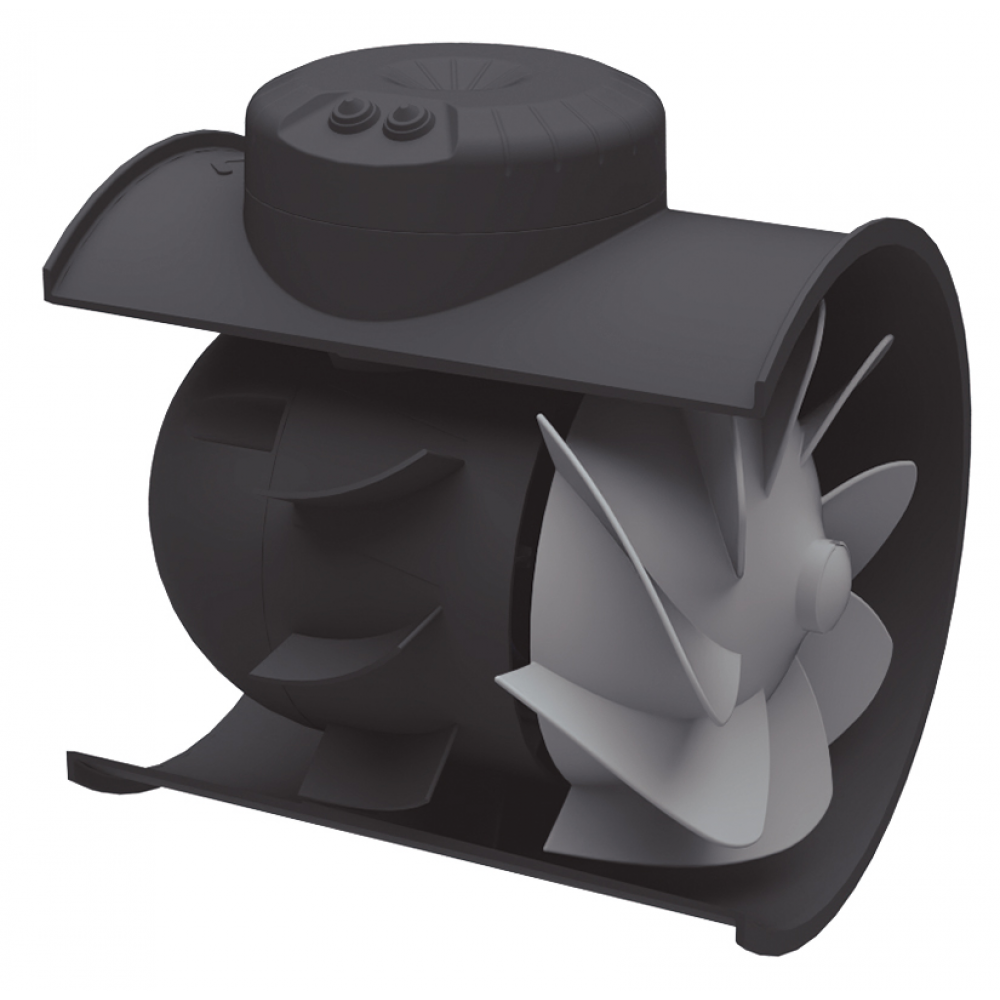

Running wheel

is made of plastic, the optimized design increases performance and reduces noise.

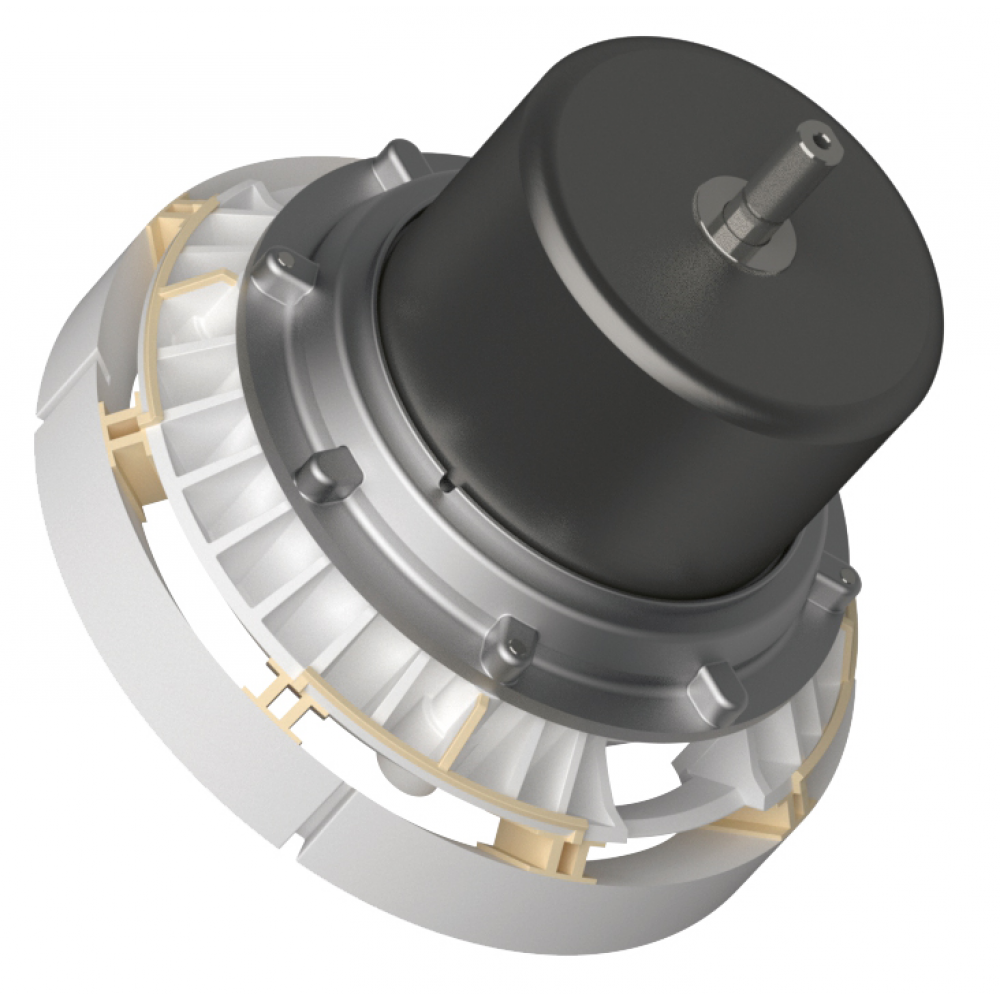

Motor

EC motor with thermal overload protection. Bearings are ball bearings with grease packing for life. Insulation class B, IP44 protection. Supply voltage 230 V - 50/60 Hz..

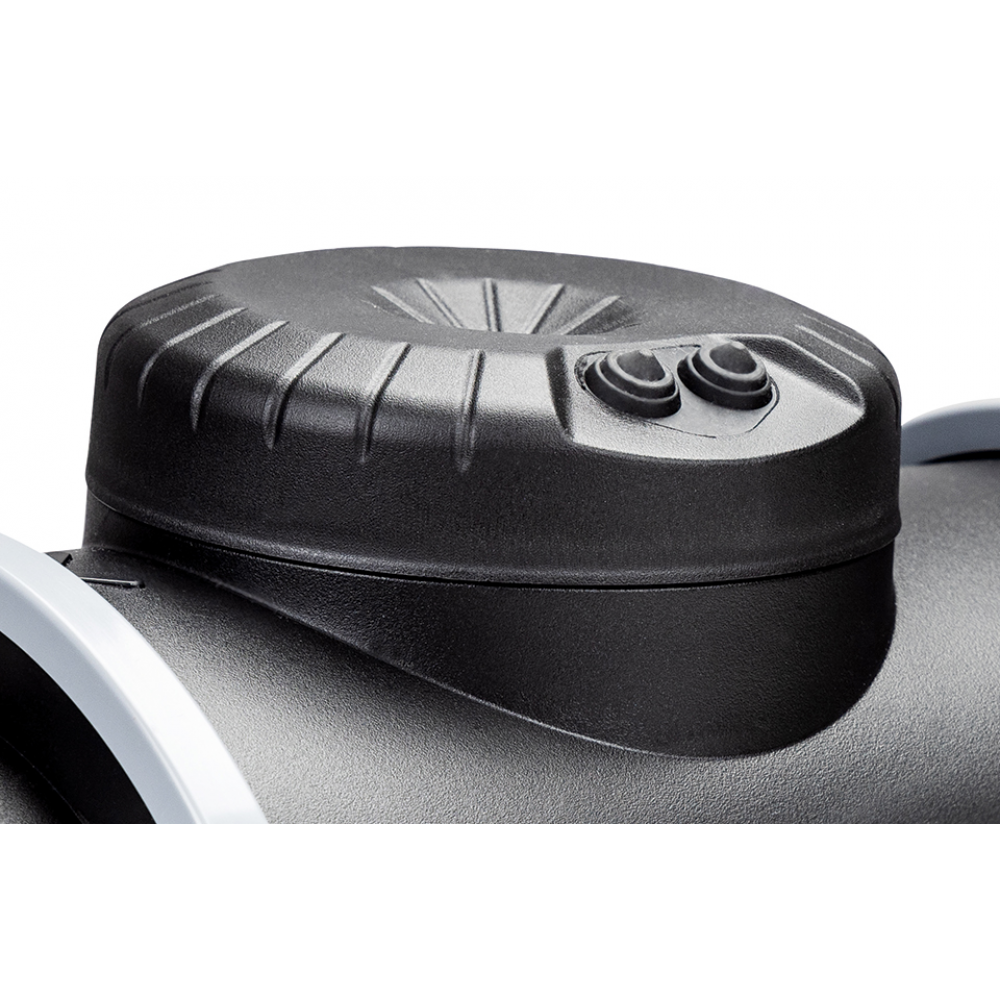

Clamps

on the fan housing, it is 360° rotatable for cable connection from any direction.

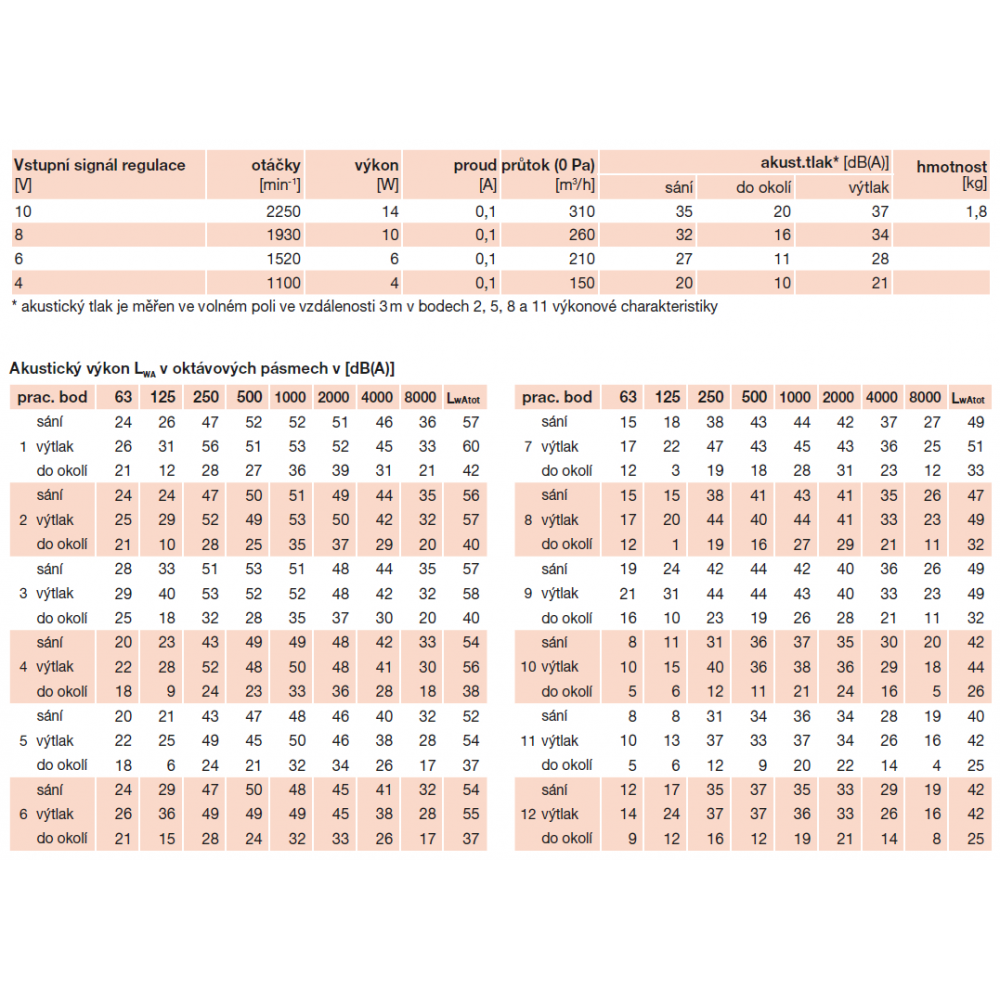

Speed control

Motors are adjustable by a potentiometer located in the terminal box or by an external REB Ecowatt speed controller. The speed can also be controlled linearly by a 0-10 VDC signal from a temperature, humidity or CO₂ sensor.

Mounting

Fans can be installed in any fan position. The enclosure must not transmit mechanical stresses from the ductwork. It is recommended to use a flexible connection to the ductwork.

Instructions

The fans are designed for ventilation of houses, social facilities, offices and premises. Conveniently, when installed in the soffit, flex-headers, fittings, junction boxes and plate valves can be used. The fans can be used in conjunction with the AIRSENS-RH intelligent sensor or with a hygrostat combined with a thermostat to ventilate wet areas.
