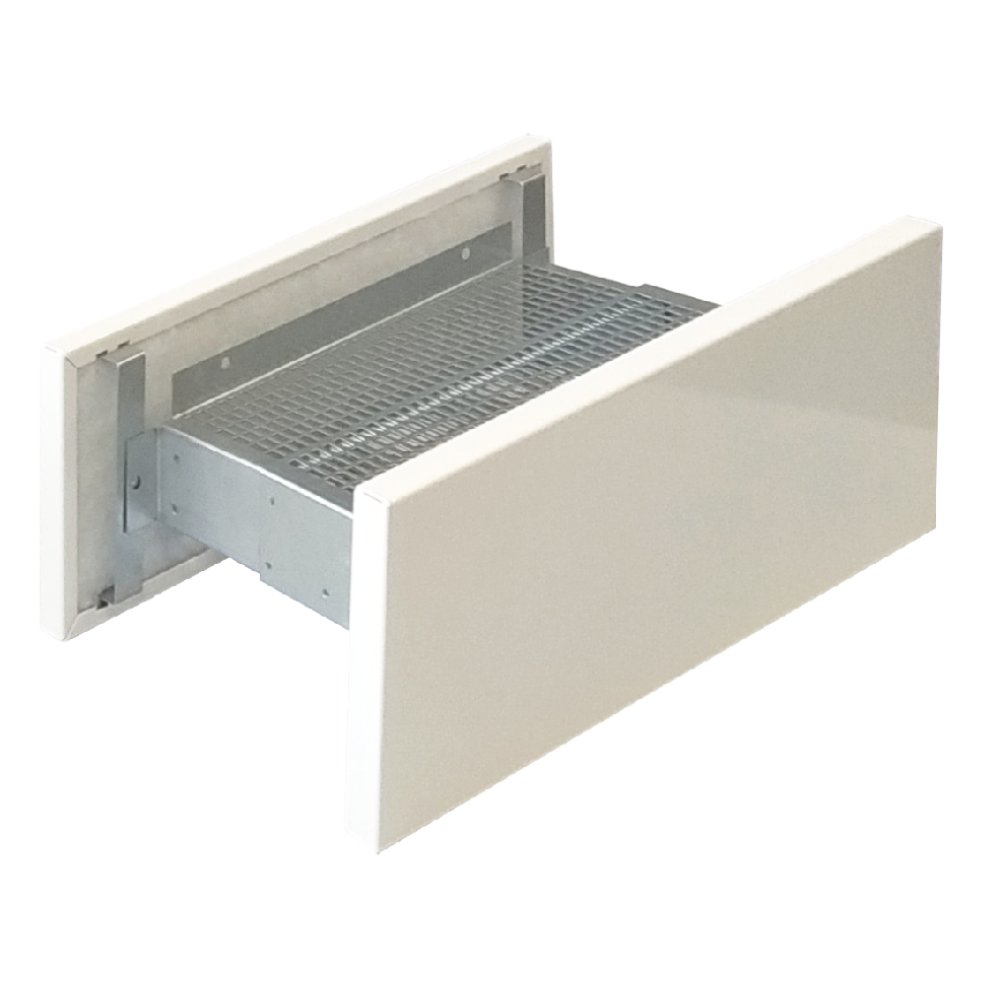

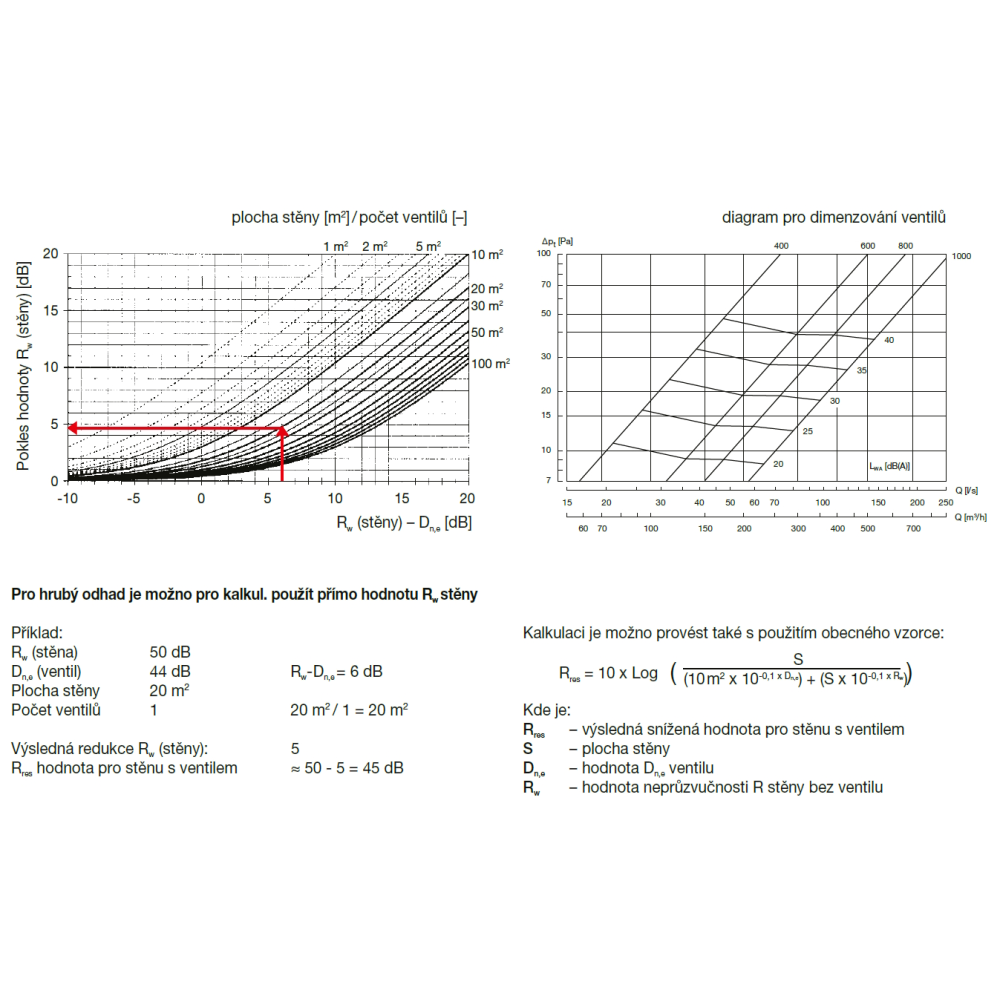

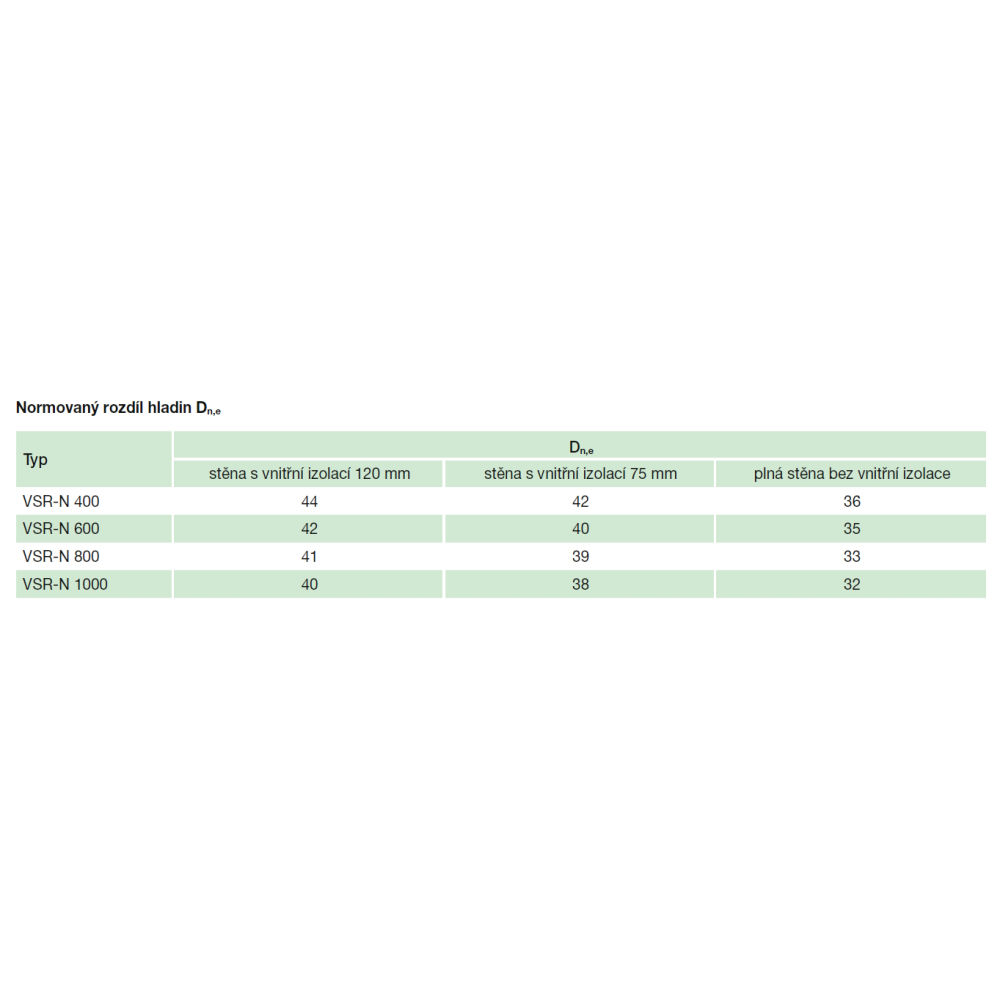

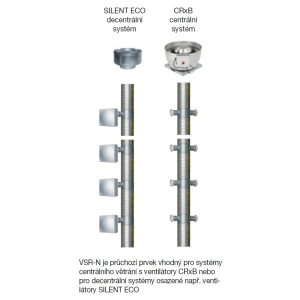

VSR-N is a square through-wall valve, designed to be installed directly on the wall. The VSR-N consists of two square face panels with sound insulation that are mounted on both sides of the wall. These are connected using the perforated wall extensions supplied. This solution provides an excellent sound attenuation value.
- high flow rate
- neutral design
- face panels with sound attenuators

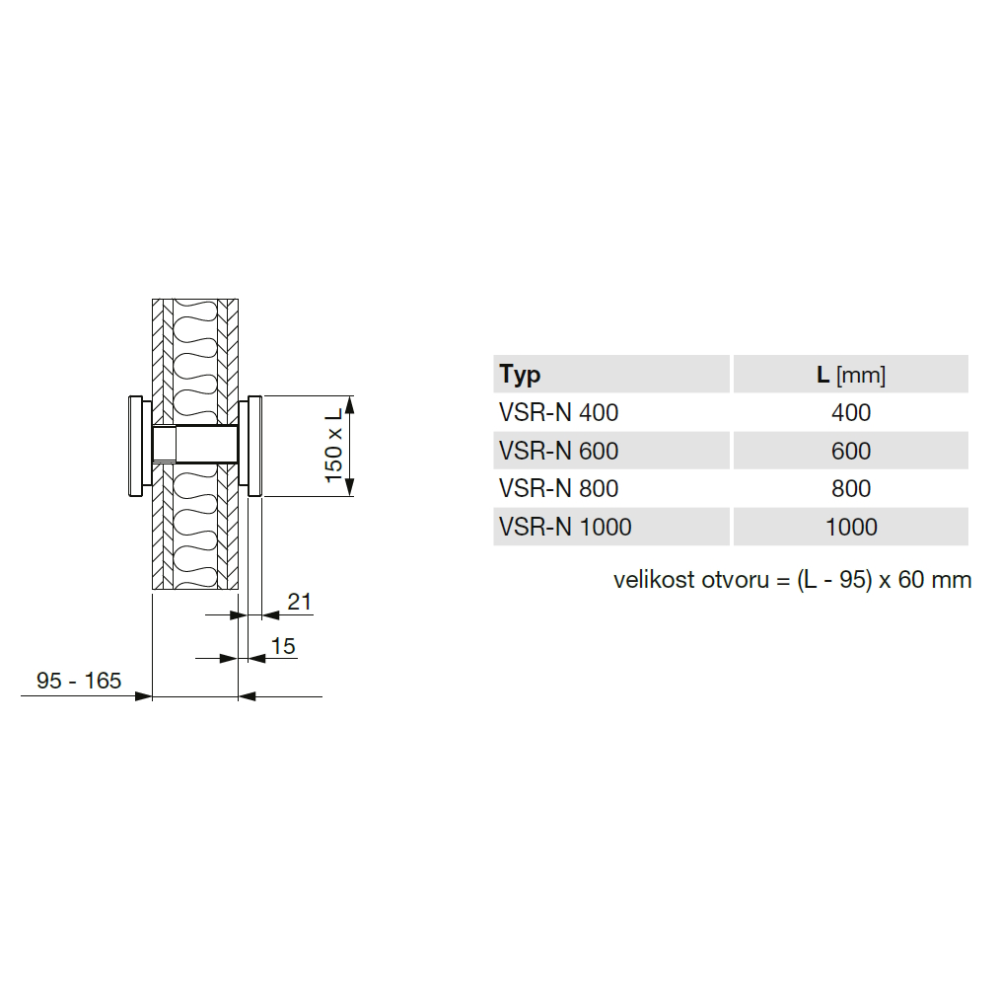

- for installation in 95-165 mm thick walls
Maintenance
Front panels can be removed so that the internal components of the valve can be cleaned. The visible parts of the valve can be cleaned in the normal way (with a duster).
Materials and surfaces
installation calipers - galvanised steel
face panels - galvanised steel
standard finish - powder coated
standard colour - RAL 9010
